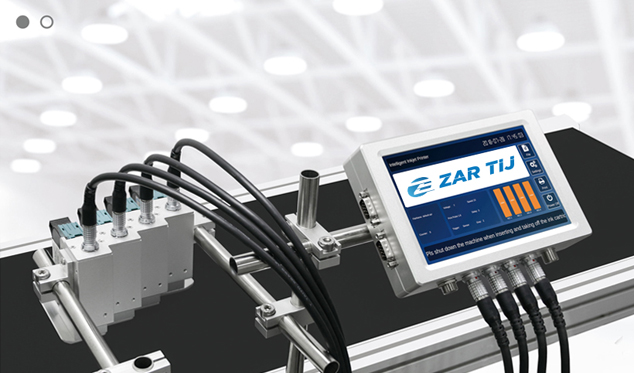

| Model | ZX4 |
| Shape features | Aluminium |
| Weight | 1.5kg |
| Dimension | 128*90*45mm |
System / CPU
| Linux / Quard core 1.4 GHz
|
| Screen | 4.3 Inch LCD with touch screen ( 7inch Optional) |
| Print Engine | Imported original TIJ2.5 driver board |
| Max Definition | 600 DPI Standard |
| Spray nozzle | Thermal foaming inkjet 2.5 |
| Printing direction | Adjustable with 360 degree, meet all kinds of production needs |
| Printing line | 1-32 lines (adjustable) |
| Printing height | 1.2mm-50mm |
| Printing distance | 1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm) |
| Printing content | Text, time, batch number, serial, number, Picture, QR code,DM code, barcode,Database printing |
| Application | carton, bucket,pipe, cable, metal, plastic bag, glass,electronics, automotive parts |
| Printing length | 2000 characters for each message, no limitation on length |
| Printing speed | 60m/min |
| Ink type | Quick-dry environmental ink, water-based ink and oily ink, UV Ink |
| Ink color | black, white, red, blue, yellow, green, invisible |
| Ink volume | 42ml (usually can print 800,000 characters) |
| Interface | USB,RS232, External Sensor,External Encoder,Alarm Light,WIFI (For S/W update only) |
| Power | 100 to 240V AC input ,50/60Hz
|
| Storage Space | The machine can store more than 1000 mass (external USB make the information transfer in a free way) |
| Working condition | Temperature:0 - 45 degree; Humidity: 10% - 80% |
