| Parameter | |
|---|---|
| MODEL - ZAR LASER ZT-F Series | |
| Frame Material | Aluminium. |
| Laser Device | Fiber Laser |
| Power | 20W/30W/50W |
| Laser Wavelength | 10.64μm |
| PERFORMANCE | |
| Galvanometer deflection | High Precision dual dimensional scanning system |
| Marking speed | ≤9000mm/s |
| Master Control | High Intergrated Board with 10 Inch Color Touch Screen |
| Operating System | LINUX based with High Speed Pipe Marking Software |
| Cooling | Air Cooling(6pcs cooling fans) |
| Focus Distance | Focus 180mm |
| Marking line type | Dot matrix, bold, vector all in one(both dot matrix and vector) |
| Minimum line width | 0.012mm |
| Repeatability accurate positioning | 0.003mm |
| Marking Specifications | |
| Marking Area | Standard 110mm×110mm（Customized available） |
| Marking height | Standard Character height 110mm |
| Marking Length | Unlimited |
| Positioning mode | Red light positioning and focusing |
| Number of characters | Multi-Line within marking size |
| Typeface | English, Arabic, Spanish, Chinese Font Library |
| Support type | |

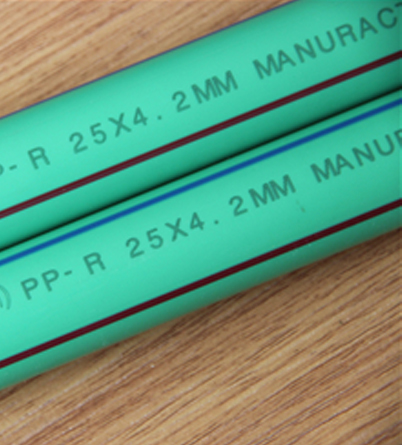

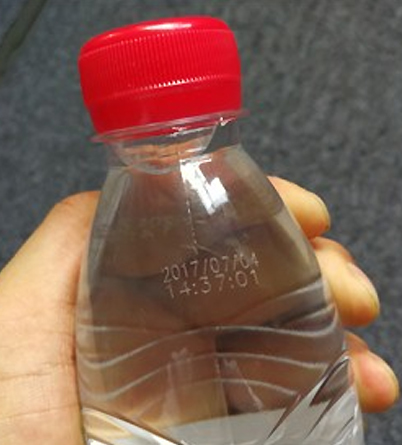

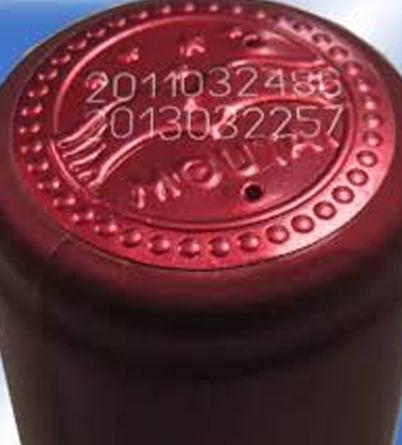

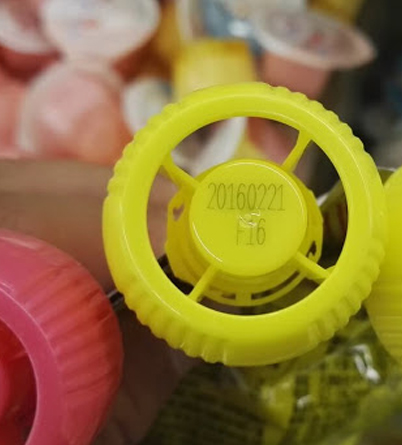

| Marking | Number, logo, image, letter, serials number, system date & time,etc… |
| File format | PLT |
| Bar code | CODE 39, CODE 128, CODE 126, QR, Z-CODE |
| Power Supply | 100-220V/50-60HZ |
| Others | |
| Power Consumption | 800W |
| Net Weight | 42kg |
| Dimension | 1200*300*350mm |
