| Parameter | ||
|---|---|---|
|
MODEL - ZAR LASER ZT-C Series |
||
|
|
Frame Material |
ALUM. |
|
|
Laser Device |

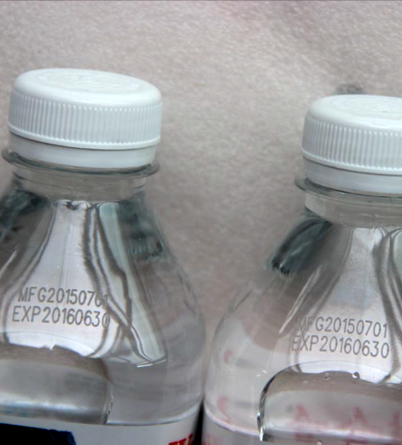

High-speed PET bottle printing |
|
|
Power |
≥10/30W/60W |
|
|
Laser Wavelength |
10.64/10.2/9.3μm |
|
PERFORMANCE |
Galvanometer deflection |
High Precision dual dimensional scanning system |
|
|
Marking speed |
≤9000mm/s |
|
|
Master Control |
Highly integrated board with 7 inch Color Touch screen |
|
|
Operating System |
LINUX based with High Speed Pipe Marking Software |
|
|
Cooling |
Air Cooling System |
|
|
Focus Distance |
Focus 150mm |
|
|
Marking line type |
Dot matrix, bold, vector all in one(both dot matrix and vector) |
|
|
Minimum line width |
0.012mm |
|
|
Repeatability accurate positioning |
0.003mm |
|
Marking Specifications |
Marking Area |
Standard 110mm×110mm（Customized available） |
|
|
Marking height |
Standard Character height 110mm |
|
|
Marking Length |
Unlimited |
|
|
Positioning mode |
Red light positioning and focusing |
|
|
Number of characters |
Any line(multi-line) within marking range |
|
|
Typeface |
Chinese , English, available to customized |
|
Support type |

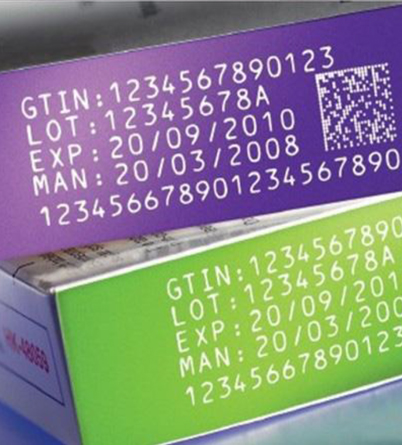

Marking |
Number, logo, image, letter, serials number, system date & time,etc… |
|
|
File format |
CNF/PLT |
|
|

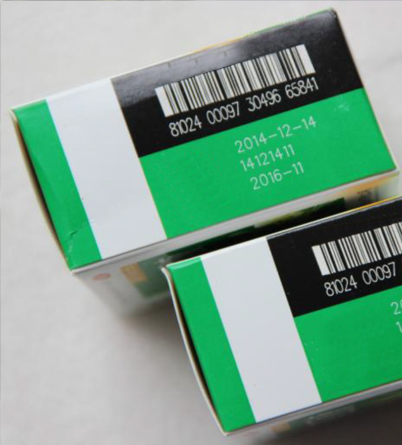

Bar code |
CODE39、CODE128、CODE126、QR、Z-Code |
|
|
Power Supply |
100-220V/50-60HZ |
|
Others |
Power Consumption |
800W |
|
|
Net Weight |
45kg |
|
|
Oversize |
350mmX300mmX1200MM |
|
Environmental Requirement |
0℃－45℃; humidity≤95%; non-condensing; no shaking |
|
