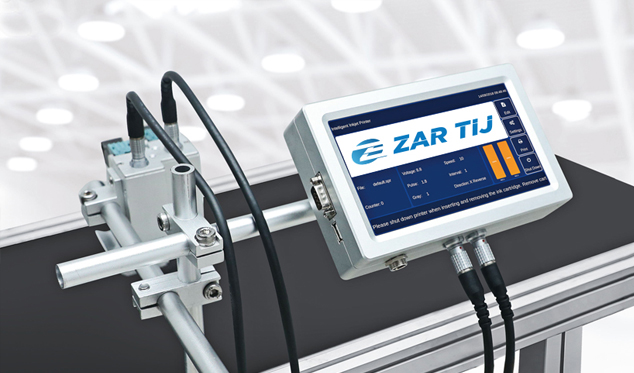

Inkjet Printer ZX2

ZX2 Variable Data Ink Jet System is a new kind of machine with High definition display screen and high precision capacitive touch screen. System firmware can be upgraded remotely. It can print date / tex / barcode / QR code / pictures / logos, etc.

Printing dot matrix numbers, dates, times, QR Code, text, graphics, barcode. Printing single and multi-line contents, maximum arrival 6 lines. Adjustable font size and type. Print up to not limit character on one line. Easy operation, free maintenance. Only need press-to-Print.

ZX2 online inkjet printing machine embedded linux operation system. Upgrade system firmware remotely via Wi-Fi connection. The inkjet coding machine can print online automatically with a sensor. Support 180 degrees direction printing.
Parameter
ModelZX2
Shape   featuresAluminium
Weight1.5kg
Dimension128*90*45mm
System / CPU
Linux / Quard core 1.4 GHz
Screen4.3 Inch LCD with touch screen ( 7inch Optional)
Print EngineImported original TIJ2.5 driver board
Max Definition600 DPI Standard
Spray   nozzleThermal   foaming inkjet 2.5
Printing   directionAdjustable   with 360 degree, meet all kinds of production needs
Printing   line1-16   lines (adjustable)
Printing   height1.2mm-25mm
Printing   distance1-10mm   Mechanical Adjustment (the best distance between the nozzle and printed  object is 2-5mm)
Printing   contentText, time, batch number, serial, number, Picture, QR code,DM code, barcode,Database printing
Applicationcarton, bucket,pipe, cable, metal, plastic bag, glass,electronics, automotive parts
Printing   length2000 characters  for each message, no limitation on length
Printing   speed60m/min
Ink typeQuick-dry environmental ink, water-based ink and oily ink, UV Ink
Ink   colorblack,  white, red, blue, yellow, green, invisible
Ink   volume42ml (usually can print 800,000 characters)
InterfaceUSB,RS232, External Sensor,External Encoder,Alarm Light,WIFI (For S/W update only)
Power100 to 240V AC input ,50/60Hz
Storage SpaceThe machine can store more than 1000 mass (external USB make the information transfer in a free way)
Working   conditionTemperature:0   - 45 degree; Humidity: 10% - 80%
